AR Series

The WDM AR series guide roll system is the key to successful angle bending. WDM machines have guide roll adjustment systems that allow the user to adjust the rolls in all ways necessary to obtain good work pieces. The small/economy machines have manual adjustments via acme screws and handwheel/worm gear arrangements. Machines 4x4 and larger have 6 way power guide rolls for optimal performance. The AR series is capable of rolling angle, flat bar, square bar, tee, round bar, pipe, tubing, channel, and I-beam.

Standard Features
  • Unitized steel construction

  • Flame hardened alloy steel shafts and arbors

  • Total hydraulic operation

  • Instant start/stop/reverse

  • 2 speed/variable speed

  • 1 set universal dies; rolls:

    • Angle leg in and out​

    • Tee bar leg in and out

    • Flats on edge and on flat

    • Square and small rounds​​

  • Accurately machined and hardened dies​

  • 3 roll drive (all machines except 4 roll)

  • Roving pendant control

  • DRO to show roll position

  • Electrics to NFPA specifications

  • 24VDC control circuit

  • Safety stop/emergency stop mushroom buttons

  • Overload protection

  • TEFC main motor

  • Quiet integrated hydraulic system

  • Painted haze grey epoxy and blue enamel

  • sealed spherical roller bearings on all main points

  • Non-lube, minimum maintenance technology throughout

  • Heavy gear drive with very strong efficient tooth profile, most gears cut in our own shop.

  • Made in USA

Options
  • Control upgrade

  • Special dies

  • Special guides

  • Overhead supports

  • Non-electric version

  • Special electrics

  • Special paint

  • High speed version

*Note, some aspects of the machines have been upgraded since the last brochure revision!

Positioning

The rollers on the AR series can be configured to bend in a vertical or horizontal position.


Beta 3

The Beta 3 comes standard with the AR-22, AR-23, and AR-31 at no charge. The Beta 3 pendant control has pushbuttons for roll adjustment and roll rotation. It also comes with 2 - LCD digital readouts to indicate roll postition.


Pre-AR Semi-Automatic

The Pre AR semi-automatic free standing rolling console provides digital readouts and 2 presets for each axis (near & far roll). Also included is length position readout and 2 presets for the roll rotation. All machine functions are controlled via joysticks or push buttons on the control panel. Motor start/stop, speed control dial, and emergency stop is mounted in the panel for easy access. On model AR-41 and larger included on the panel is a push button to control the 6 way power guide rolls. The controls are housed in a heavy duty NEMA 12 enclosure with stainless steel hand rail. This popular control provides just enough automation to greatly speed through put performance, and accuracy. It is easily programmed and can be used as standard or preset type control. In many cases this control increases roll performance 500% or more and is usually all the automation that is required. This control is recommended for part batch sizes from 3 to 100+ pieces


Dies/Guide Rolls

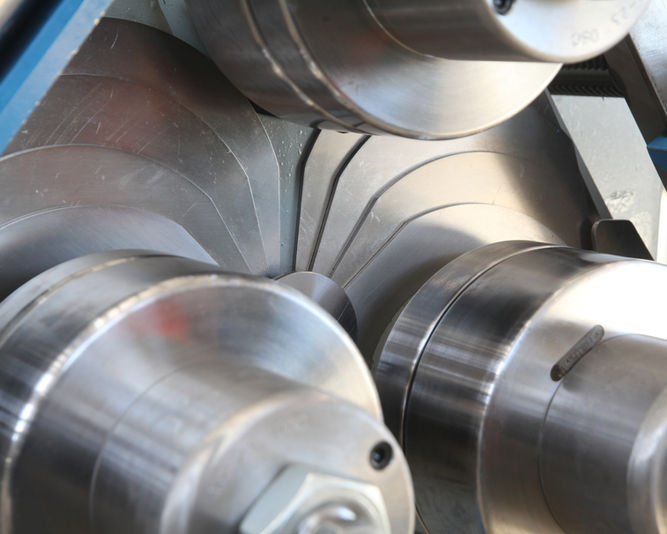

Hardened and ground universal rolls/dies are telescoping to allow for optimum adjustments with main cap screw. These rolls can be used to roll angles leg in/out, tees leg in/out, flat bars on flat and on edge, square bars, and small rounds.

Optional rolls are available for:

  • Round tube

  • Large rounds

  • Channel on web and flange

  • I-beam on web and flange

  • Square and rectangle structural tube

  • Forming half pipes and channels

  • Earth mover tire lock rings

  • Profiling and radiusing half pipe from flat strip, stainless and carbon steel.

  • Aluminum extrusions for manholes and industrial louvers

  • Formed steel and stainless steel sections for man holes and similar applications


AR-520

The AR-520 comes standard with the AR-41 and larger machines at no charge. The AR-520 pendant control features heavy duty electric toggle switches for all power and speed functions on bending and guide rolls. 2-LCD digital displays show roll position.


Pre GR-AR Semi-Automatic

The Pre/GR-AR semi- automatic free standing rolling console (model AR-41 and larger) provides digital readouts and 2 presets for each near and far roll. Also included is length position readout and presets for roll rotation. There are 6 readouts showing the position of the 6 way guide rolls. All machine functions are controlled via joystick or push button on the control panel. Motor start/stop, speed control dial, and emergency stop is mounted in the panel for easy access. The controls are housed in a heavy duty NEMA 12 enclosure with stainless steel hand rail. This popular control provides just enough automation to greatly speed through put, performance, and accuracy. It is easily programmed and can be used as standard or preset type control. In many cases this control increases roll performance 500% or more and is usually all the automation that is required. This control is recommended for part batch sizes from 3 to 100+ pieces


Many other controls and options are available. We can also custom make something to suit your needs at minimal cost. Please contact us for additional information.

Gallery


Waldemar Design & Machine L.L.C. warrants its products to be free from defects in material and workmanship for a period of one year from date of manufacture. Waldemar's obligation is to replace, free of charge, any defective part of any product that its inspection shows to be defective, including the lowest priced round trip transportation to Waldemar's plant in Spencer, TN, from any point in the 48 contiguous states. Waldemar shall not be liable for installation and removal expense, loss of time, manufacturing costs, labor, materials, loss of profits, or consequential damages direct or indirect, because of defective products. There is no other warranty, expressed or implied.
